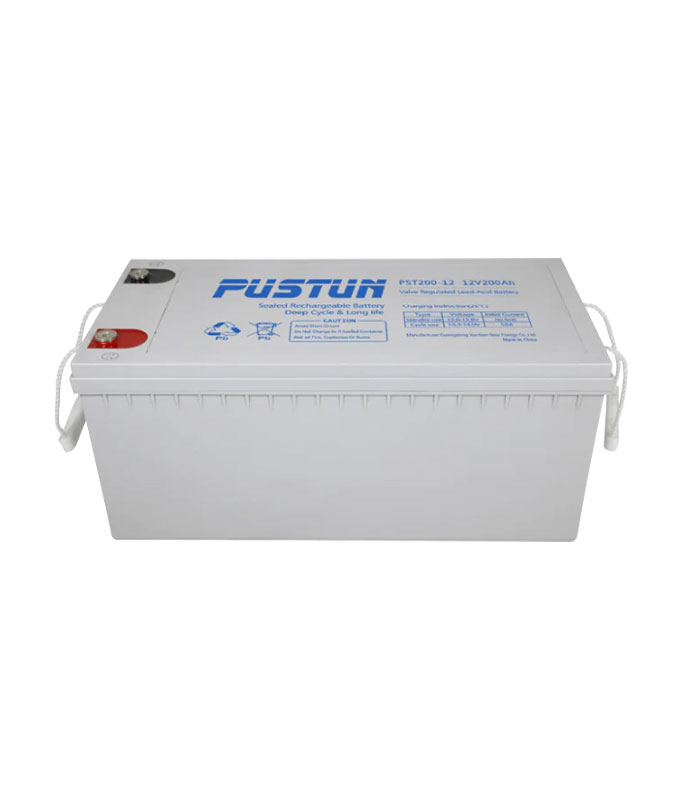

Pustun PTD200-12 Deep-Cycle Gel Battery – Reliable Power for Solar and Backup Systems

The PTD200-12 Gel Battery offers 12 V and 200 Ah of sealed gel deep-cycle power, making it ideal for solar storage, UPS backup, and off-grid applications. Thanks to its maintenance-free gel design, this battery delivers reliable performance without the hassle of regular servicing.

The PTD200-12 Gel Battery uses sealed gel technology to combine deep-cycle capability with stable performance in demanding environments. Built by PUSTUN, this 12 V 200 Ah battery supports both solar power systems and critical backup setups. It features a spill-proof construction and wide temperature tolerance (-20 °C to +60 °C) for use in varying conditions.

Because it uses gel electrolyte and AGM/VRLA design, the PTD200-12 requires no topping up and minimal maintenance. You’ll benefit from a long stored design life (typically 12-15 years under optimal conditions) and dependable discharge performance for regular or standby use. Whether you’re powering off-grid lighting or protecting critical loads in a UPS scenario, this battery gives you peace of mind.

Key Features

12 V nominal voltage with 200 Ah capacity at 20-hour rate.
Sealed gel deep-cycle construction – maintenance-free, non-spillable.
Wide operating temperature range: -20 °C to +60 °C.
Long designed life: 12-15 years in standby use. Pustun Energy Technology
Suitable for solar systems, UPS backup, telecommunications or standby power.

DG (Deep Cycle GEL)series is a pure GEL battery with a 15~20-year floating design life, it is ideal for standby or frequent cyclic discharge applications under extreme environments. By using strong grids, high-purity lead, and patented Gel electrolyte, the DG series offers excellent recovery after deep discharge under frequent cyclic discharge use and can deliver 400 cycles at 100% DOD. Suitable for solar, CATV, marine, RV, deep discharge UPS, communication, telecommunication, etc.

GENERAL FEATURE

Micromillimeter SiO₂ and H₂SO₄ technology for efficient gas recombination of up to 99% and freedom from electrolyte maintenance or water adding.
Not restricted for air transport-complies with
IATA/ICAO Special Provision A67.
Can be mounted in any orientation.
Computer-designed lead, calcium tin alloy grid for high power density.
Long service life, float or cyclic applications.
Maintenance-free operation.
Low self-discharge.

Specifications

Model: PTD200-12
Nominal Voltage: 12 V Pustun Energy Technology+1
Rated Capacity: 200 Ah @ 20h rate Pustun Power
Dimensions (approx): 522 × 240 × 216 mm Pustun Energy Technology
Weight: ~60 kg Pustun Energy Technology
Electrolyte: Gel – sealed construction
Application: Solar energy storage, UPS/standby, deep-cycle use

MATERIAL

Component	Positive plate	Negative plate	Container	Cover	Safety valve	Terminal	Separator	Electrolyte
Raw material	Lead dioxide	Lead	ABS	ABS	Rubber	Copper	Fiberglass	Colloidal Silicon

CONFIGURATION

Capacity 77°F(25°C)	20 hours rate (5.2A/10.8V)	230Ah
	10 hours rate (10A/10.8V)	210Ah
	5 hours rate (17.4A/10.5V)	200Ah
	1 hour rate (63.5A/9.6V)	118Ah
Internal Resistance	Full charged battery 77°F(25°C): 6 m
Capacity affected by Temperature (10 hour rate)	104°F(40°C)	102%
	77°F(25°C)	100%
	32°F(10°C)	85%
	5°F(-15°C)	65%
Self-Discharge 68°F(20°C)	Capacity after 3 month storage	90%
	Capacity after 6 month storage	80%
	Capacity after 12 month storage	60%
Max discharge current 77°F (25°C): 800A (5S)
Charge (Constant Voltage)	Float:13.6 to 13.8V/77°F(25°C)
Charge (Constant Voltage)	Cycle: 14.4 to 14.7V/77°F(25°C) \| Max Current: 25A

Why Choose the Pustun PTD200-12 Gel Battery?

Long-Life Performance: Designed for deep-cycle use, ensuring consistent energy supply over many years.
Maintenance-Free: The sealed gel battery structure eliminates the need for refilling or regular servicing.
Safe and Durable: Resistant to vibration, leakage, and extreme temperatures.
Ideal for Solar Power: Works perfectly with off-grid solar systems, UPS units, and backup energy setups.
Environmentally Friendly: Uses non-spillable gel electrolyte that reduces emissions and improves safety.

PERFORMANCE REPORT

FAQ

Q1: What does “deep-cycle” mean for this battery?
A1: A deep-cycle battery like the PTD200-12 is designed to be discharged and re-charged many times, making it ideal for repeated use in solar or backup power systems.

Q2: Is this battery maintenance-free?
A2: Yes. The sealed gel construction means you don’t need to add water or check electrolyte levels.

Q3: Can it handle harsh conditions?
A3: Yes. It operates in wide temperature ranges and is built for reliability in standby or solar applications.

Q4: How long will it last?
A4: With proper setup and usage, you can expect a life of 12-15 years in standby use. Actual life will depend on discharge depth and operating conditions. Pustun Energy Technology

Q5: Is it good for solar systems off-grid?
A5: Absolutely. Its capacity and deep-cycle design make it suitable for solar storage, ensuring reliable power when the grid goes out.

Why Choose the PTD200-12 Gel Battery?

Because it uses quality gel construction, the PTD200-12 delivers long-life deep-cycle performance while minimizing maintenance. Whether you’re installing solar, protecting backup loads, or building a standby system, this battery offers a robust solution at a competitive price.
